Elevate Your Sound with the AudioFuse 16Rig

When Arturia debuted the AudioFuse Studio interface, they set a groundbreaking standard in audio recording and management, offering a diverse range of connectivity and control options without sacrificing quality or clarity. Now, the AudioFuse 16Rig takes this innovation further, enhancing multimode audio, MIDI, and USB interfacing to impress engineering experts with its powerful, versatile, matrix-style modularity.

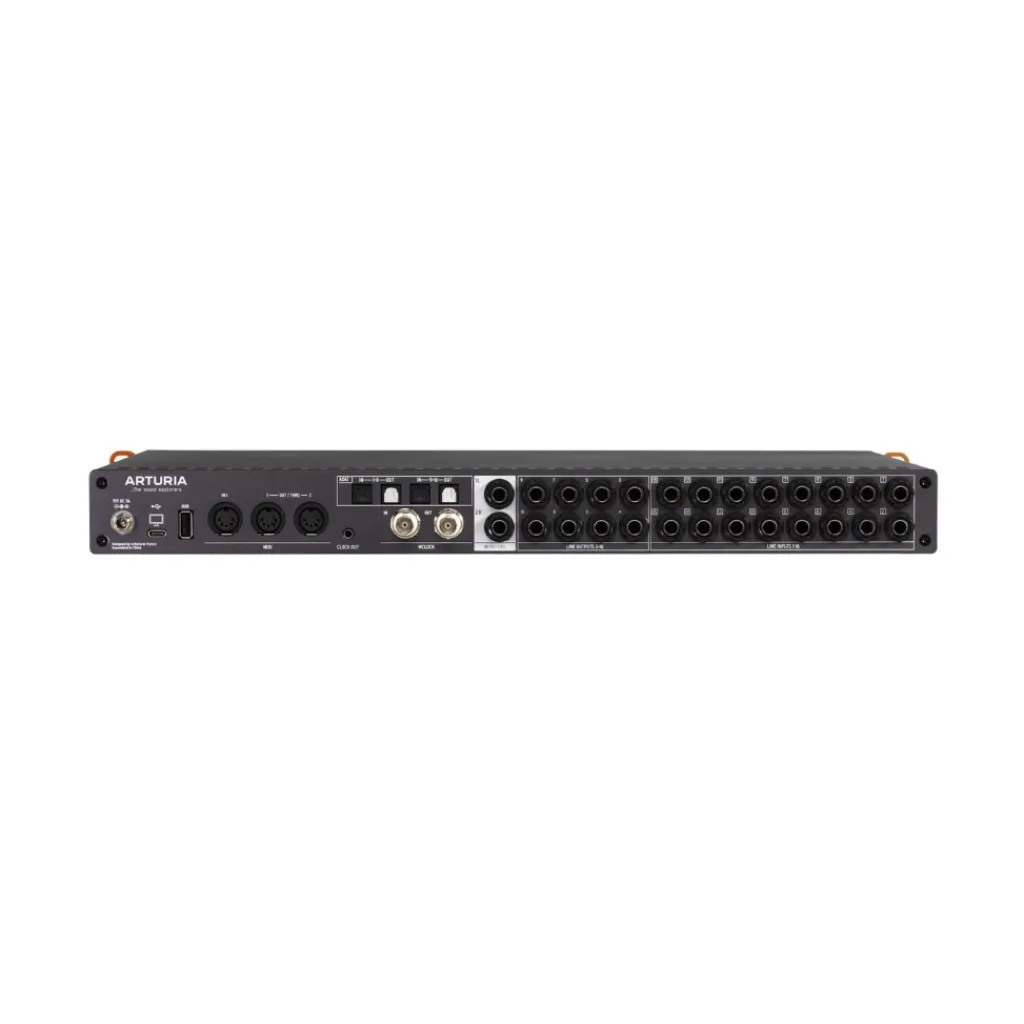

The AudioFuse 16Rig acts as the central nervous system of your setup, facilitating complex routing, monitoring, re-amping, and multi-instrument, simultaneous I/O recording. Equipped with a 16-in/12-out array of analog connections, dual ADAT I/O pairs, Word Clock I/O, two combo jacks, and multipurpose headphone outputs, it delivers extensive connectivity. With USB and 5-pin DIN MIDI support, dedicated USB-A hubs, and onboard DSP mixers, the AudioFuse 16Rig offers unmatched flexibility for any recording environment.

For maximum creative freedom, you can even operate the AudioFuse 16Rig as a standalone unit—no DAW required! Plus, it comes with the AudioFuse Creative Suite of plug-ins, enhancing your production experience and empowering your most ambitious projects. This interface is designed to support your artistic vision, whether in the studio or on stage.

Features

• All-Analog Design: Features ESS and Cirrus Logic 24-bit AD/DA converters for consistent signal preservation and exceptional clarity.

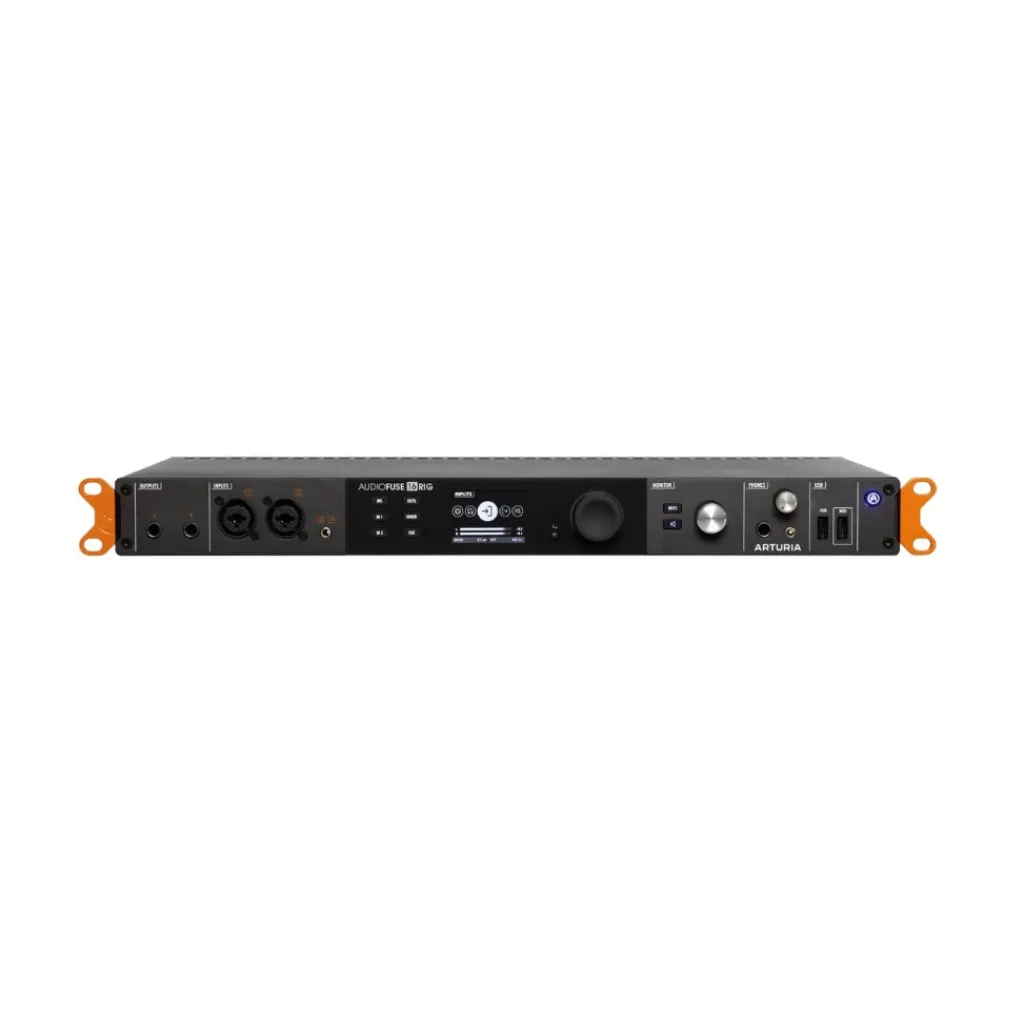

• 16-in/12-out Configuration: Includes conveniently located front-mounted I/O, keeping essential connections ready for recording.
• Front-Mounted Combo Jacks: Support line-level, instrument, and XLR inputs for channels 1 and 2.
• Auxiliary Input: Channels 3 and 4 accessed via a 1/8-inch stereo input for enhanced stereo refinement.
• Multimode Analog Outputs: 12 outputs, including 8 DC-coupled TRS outputs for controlling synth modules and expression devices.
• Flexible Output Functions: Channels 3 and 4 support Re-amp, Altphones, and Directthru for augmented recording and playback flexibility.
• Standalone Operation: Manage audio sources and Class Compliant MIDI devices through USB or 5-pin DIN without a computer.
• ADAT I/O Support: Two ADAT I/O pairs accommodate up to 16 channels at 96kHz recording quality, with 192kHz archiving capability.
• Word Clock Feature: Ensures precise master/slave sync configurations.
• Monitor Section: Speaker-icon button offers three functions: dimming, mono checking, and A/B stereo switching.
• Arturia AudioFuse Control Center: Software provides deep control over Main and Cue Mixers, MIDI management, and preset design.
• MIDI Control: Entire interface controllable via MIDI, including mixer levels and routing management with Class Compliant controllers.
• Routing Matrix: Control any analog and digital destination across Monitor, Phones, ADAT, Main Mix, Cue Mix, and Auxiliary sends.
• Included Accessories: Comes with USB-A to USB-C cable, USB-C to USB-C cable, PSU, registration card, and removable rack ears for compatibility with various setups.
